Trailer Module

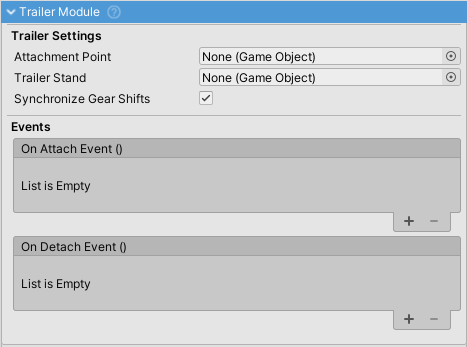

TrailerModule inspector

The trailer system consists of two complementary modules that work together to enable towing:

  • TrailerModule - Enables a vehicle to BE towed (attached to another vehicle)
  • TrailerHitchModule - Enables a vehicle to TOW trailers

Both modules can exist on the same vehicle for road trains (truck to dolly to trailer chains).

Quick Setup

Basic Trailer Setup

  1. Add TrailerModule to your trailer's VehicleController
  2. Create an empty GameObject as a child, position it at the trailer tongue/pin
  3. Assign this Transform to Attachment Point
  4. Set appropriate Attachment Trigger Radius (0.2-0.4m typical)
  5. Optionally assign a Trailer Stand GameObject

Basic Tow Vehicle Setup

  1. Add TrailerHitchModule to your tow vehicle's VehicleController
  2. Create an empty GameObject as a child, position it at the hitch ball
  3. Assign this Transform to Attachment Point
  4. Set appropriate Attachment Trigger Radius (0.3-0.6m typical)

Connecting

By default, press T when attachment points are close to connect/disconnect.

TrailerModule Properties

Property Type Default Description
attachmentPoint Transform - Where trailer connects to hitch (tongue/pin location)
attachmentTriggerRadius float 0.2 SphereCollider trigger radius for detection
attachmentLayer int - Physics layer for detection (must match hitch)
trailerStand GameObject - Landing gear, disabled when attached
synchronizeGearShifts bool false Match towing vehicle's gear (powered trailers)
resetInputStatesOnDetach bool true Clear inputs on detachment
attached bool false Read-only: Is trailer currently attached?
trailerHitch TrailerHitchModule null Read-only: Reference to attached hitch (runtime)

Events

Event Description
onAttach Triggered when attached to a towing vehicle
onDetach Triggered when detached from a towing vehicle

TrailerHitchModule Properties

Property Type Default Description
attachmentPoint Transform - Hitch ball/coupling position
attachmentTriggerRadius float 0.4 Detection trigger radius
attachmentLayer int - Physics layer for detection
attachOnEnable bool false Auto-attach trailers on scene start
detachable bool true Can trailer be manually detached?
breakForce float Infinity Joint break threshold in Newtons
useHingeJoint bool false Lock lateral rotation (articulated buses)
disconnectMode enum Closest Which trailer to disconnect (see below)
noTrailerPowerCoefficient float 1.0 Engine power without trailer
attached bool false Read-only: Is a trailer currently attached?
attachedTrailerModule TrailerModule null Read-only: Reference to attached trailer (runtime)
trailerInRange bool false Read-only: Is a trailer's attachment point in range?

Events

Event Description
onTrailerAttach Triggered when a trailer is successfully attached
onTrailerDetach Triggered when a trailer is detached

Connector Detection (Non-Detachable Hitches)

A trailer with a non-detachable hitch (detachable=false) is treated as a connector (e.g., converter dolly) and is automatically:

  • Excluded from GetTrailerChain(includeDollies: false)
  • Not counted in GetTrailerCount()
  • Skipped by DetachFurthestTrailer()

Why This Works

In European-style trailers, the dolly is permanently attached to the trailer as a single unit:

Truck ←[detachable=true]→ Dolly ←[detachable=false]→ Trailer
                          (dolly's hitch)

Since the dolly's hitch has detachable=false, it's recognized as a connector that shouldn't be counted separately. When you detach, the entire Dolly+Trailer unit separates from the truck.

detachable Property

Value Behavior
true (default) Normal trailer - counted in chain, can be detached
false Connector - skipped in chain counting, cannot be manually detached

Note: Even with detachable=false, the joint can still break if breakForce is exceeded.

Disconnect Mode

The disconnectMode property on TrailerHitchModule determines behavior when pressing the detach key:

Closest Mode (Default)

Disconnects the trailer directly attached to this hitch:

Truck [TrailerHitchModule] ─── Dolly ─── Trailer
                          ↑
                     Disconnects here

Furthest Mode

Walks the chain and disconnects the last non-dolly trailer:

Truck [TrailerHitchModule] ─── Dolly ─── Trailer
                                              ↑
                                     Disconnects here
                                     (dolly stays attached)

This mode is useful for road trains where you want to drop cargo trailers one at a time while keeping dollies connected.

Multi-Trailer Chain API

Getting Chain Information

TrailerHitchModule hitch = vehicleController.GetModule<TrailerHitchModule>();

// Get all trailers in the chain
List<TrailerModule> allTrailers = hitch.GetTrailerChain(includeDollies: true);

// Get only cargo trailers (exclude connectors with non-detachable hitches)
List<TrailerModule> cargoOnly = hitch.GetTrailerChain(includeDollies: false);

// Get the last non-connector trailer
TrailerModule lastTrailer = hitch.GetLastTrailerInChain();

// Get count of actual trailers (excludes connectors)
int trailerCount = hitch.GetTrailerCount();

Manual Attachment/Detachment

// Attach a trailer programmatically
hitch.AttachTrailer(trailerModuleWrapper);

// Detach the directly attached trailer
hitch.DetachTrailer();

// Detach the furthest trailer in the chain
hitch.DetachFurthestTrailer();

Joint Configuration

The system uses Unity's ConfigurableJoint for the physics connection:

// Joint configuration applied automatically:
joint.xMotion = ConfigurableJointMotion.Locked;  // No X translation
joint.yMotion = ConfigurableJointMotion.Locked;  // No Y translation
joint.zMotion = ConfigurableJointMotion.Locked;  // No Z translation
joint.angularZMotion = useHingeJoint ? Locked : Free;
joint.enableCollision = true;
joint.breakForce = breakForce;

Ball Joint (Default)

  • useHingeJoint = false
  • Free rotation on all axes
  • Standard for trailers, caravans, horse trailers

Hinge Joint

  • useHingeJoint = true
  • Locks lateral rotation (Z-axis)
  • Used for articulated buses, logging equipment, fire truck ladders

Common Configurations

Standard Semi-Trailer

Truck (TrailerHitchModule: detachable=true)
  │
  └── Trailer (TrailerModule)
  • Standard detachable trailer
  • Press T to attach/detach

Articulated Bus

Front Section (TrailerHitchModule: detachable=false, useHingeJoint=true)
  │
  └── Rear Section (TrailerModule)
  • Non-detachable, permanent connection
  • No roll rotation (hinge joint)
  • Rear section follows front
  • Rear is skipped in chain counting (connector behavior)

European Trailer with Dolly

Truck (TrailerHitchModule: detachable=true)
  │
  └── Dolly (TrailerModule + TrailerHitchModule: detachable=false)
              │
              └── Trailer (TrailerModule)
  • Dolly and Trailer form one permanent unit
  • Dolly's hitch has detachable=false → recognized as connector
  • GetTrailerCount() returns 1 (dolly skipped)
  • Pressing T detaches the entire Dolly+Trailer unit

Road Train (Multi-Trailer)

Truck (TrailerHitchModule: disconnectMode=Furthest)
  │
  └── Dolly (TrailerModule + TrailerHitchModule: detachable=false)
              │
              └── Trailer 1 (TrailerModule + TrailerHitchModule: detachable=false)
                              │
                              └── Dolly (TrailerModule + TrailerHitchModule: detachable=false)
                                          │
                                          └── Trailer 2 (TrailerModule)
  • With disconnectMode=Furthest, pressing T disconnects Trailer 2
  • Trailers with non-detachable hitches (connectors) are skipped
  • GetTrailerCount() returns 1 (only Trailer 2, which has no non-detachable hitch)

Powered Trailer (Drive-On-Trailer)

Truck (TrailerHitchModule)
  │
  └── Trailer (TrailerModule: synchronizeGearShifts=true)
        └── Powered wheels (same gear as truck)
  • Trailer has its own powertrain
  • Gear shifts synchronized with towing vehicle
  • Useful for very heavy loads

Attachment/Detachment Flow

Attachment Process

1. TrailerHitchModuleWrapper detects trailer's SphereCollider trigger
2. User presses T (TrailerAttachDetach input)
3. TrailerHitchModule.VC_FixedUpdate():
   ├── GetNearestTrailer() finds closest unattached trailer
   └── AttachTrailer(wrapper):
       ├── Positions trailer so attachment points align
       ├── Creates ConfigurableJoint
       └── Calls TrailerModule.OnAttach(this)
           ├── Disables trailer stand
           ├── Subscribes to towing vehicle enable/disable
           └── Sets attached = true

Detachment Process

1. User presses T while attached
2. TrailerHitchModule.VC_FixedUpdate():
   ├── If disconnectMode=Closest: DetachTrailer()
   └── If disconnectMode=Furthest: DetachFurthestTrailer()
3. DetachTrailer():
   ├── Returns early if detachable=false
   ├── Destroys ConfigurableJoint
   └── Calls TrailerModule.OnDetach()
       ├── Resets input states (if configured)
       ├── Enables trailer stand
       └── Disables trailer VehicleController

State Synchronization

When attached, the hitch synchronizes state from towing vehicle to trailer:

Input States

// Copied each FixedUpdate
trailer.input.states = towingVehicle.input.states;

Lights

// Light state synchronized
trailer.lightsManager.SetStateFromInt(towingVehicle.lightsManager.GetIntState());

Enable/Disable

The trailer subscribes to the towing vehicle's enable/disable events:

towingVehicle.onEnable += trailer.Enable;
towingVehicle.onDisable += trailer.Disable;

Static Friction Propagation

When the towing vehicle's wheels break static friction, it propagates to the trailer:

// In TrailerHitchModule:
_rigidbodyGroup.OnStaticFrictionBroke += PropagateStaticFrictionBreak;

private void PropagateStaticFrictionBreak()
{
    attachedTrailerModule.vehicleController.BreakStaticFriction();
}

This ensures synchronized traction behavior, preventing the trailer from "anchoring" when the truck starts moving.

Input Handling

Default Key

  • Attach/Detach: T key (TrailerAttachDetach input)

Input Providers

Provider Mapping
InputManagerVehicleInputProvider KeyCode.T
InputSystemVehicleInputProvider InputAction "TrailerAttachDetach"
MobileVehicleInputProvider MobileInputButton

Custom Input

// Programmatic attachment (bypass input)
TrailerHitchModule hitch = vc.GetModule<TrailerHitchModule>();

// Check if trailer is nearby
TrailerModuleWrapper nearestTrailer = hitch.GetNearestTrailer();
if (nearestTrailer != null && !hitch.attached)
{
    hitch.AttachTrailer(nearestTrailer);
}

Wrapper Components

The Wrapper components (TrailerModuleWrapper, TrailerHitchModuleWrapper) are MonoBehaviours that:

  1. Create SphereCollider triggers at attachment points in Awake()
  2. Forward trigger events to the modules
  3. Handle OnJointBreak() callbacks for joint failure detection
  4. Provide Gizmos for editor visualization

They run in Awake() so triggers exist even if VehicleController is disabled.

Troubleshooting

Trailer Won't Attach

Check:

  • Both attachment points exist and are assigned
  • Attachment layers match on both modules
  • Trigger radii are large enough to overlap
  • Both VehicleControllers are enabled

Trailer Detaches Unexpectedly

Check:

  • breakForce is high enough (or Infinity)
  • Joint is not being stressed beyond limits
  • No collisions forcing separation

Road Train Not Working

Check:

  • All intermediate vehicles have BOTH TrailerModule AND TrailerHitchModule
  • Connector dollies have detachable=false on their TrailerHitchModule
  • disconnectMode is set correctly on each hitch

Performance with Many Trailers

Tips:

  • Use LOD system on trailers
  • Consider sleeping distant trailers
  • Reduce physics substeps on trailer wheels
