    Upgrade Notes

    Back up the project before upgrading. For a clean import, move your own assets and modified presets out of the old NWH folders, remove the old package files, then import the new version.

    Follow the non-code steps for your version. If you have custom scripts or integrations, also check the Code section below.

    Non-code

    14.4.0 to 14.4.1

    • A vehicle at rest on a slope now needs brake torque to stay there. Brakes > Brake While Idle and Brake While Disabled, both on by default, provide it. A vehicle with Brake While Idle off rolls when it is left in neutral or with the clutch pressed; turn the option on or apply the handbrake where it has to stay parked.

    14.3.x to 14.4.0

    • If a Base Sample from an earlier version is imported, delete that sample folder and import the Base Sample again. The skidmark, surface particle and ground noise assets moved into the package with their GUIDs, so the old sample copies conflict with them.
    • Vehicles keep their saved differential values. If a vehicle's LSD came from one of the Apply Preset rows, apply that preset again to get the new partial locking; "Locked (spool)" gives the old behaviour.

    14.2 Beta 2 to 14.3.0

    • If you use FFB, update Unity-DirectInput using the setup guide and reimport Direct Input FFB Sample. Retune retired kerb, scrub, ABS, engine-resonance and shift-jolt effects using the current FFB controls.
    • Re-check CVT/External transmission types, wheel mass and load rating on vehicles saved in 14.0-14.2. Those versions could change the saved values.
    • Reimport samples with renamed folders; don't merge old and new copies. Back up sample customizations first.
    • For PUN2, keep PhotonMultiplayerVehicle last in Observed Components. See the Code section if you customized its send rates.

    13.x to 14.x

    • Unity 6000.0.80f1 or newer required. Clean import recommended; install Vehicle Physics, Wheel Controller and Common together through Package Manager. URP is a dependency; for Built-in RP, use Tools > NWH > Convert Folder URP to Built-in.
    • Replace Unity WheelCollider setups with WheelController; the old backend is removed.
    • Transfer per-wheel friction settings to the StandardFriction component. It is added automatically with defaults, without your v13 tuning. Retune load sensitivity and friction ellipticity; the old values aren't equivalent.
    • Re-enter transmission gear ratios; gearing profiles are removed. Retune the differential's LSD ramp angles, preload torque and slip torque coefficient.
    • Re-enter vehicle dimensions on VehicleController. Retune spring progressiveness, anti-roll stiffness/damping and roll center height; the old suspension curves, anti-roll force and force application offset don't migrate directly.
    • Remove missing CamberController components. Set the camber curve on each WheelController and enable Use Camber Curve.
    • Replace SteeringWheelInputProvider using the FFB setup guide. Add both DirectInputManager and FFBInputProvider, then configure bindings and calibration.
    • Rewired providers and the Cinemachine camera setup are removed. Switch to the included input providers and camera modes, or update your own integration.
    • Assign the dashboard's vehicle reference, or select the active vehicle as its data source. Restore missing scene mesh/material references from the new assets.
    • Check engine sample base RPMs after the first Play, and restore custom sound positions on the engine and transmission. Retune sound, steering and damage settings that used removed fields.
    • Test each vehicle's handling. Friction presets and drivetrain inertia changed; retune engine/clutch settings and raise legacy ESC intensity into the current 1-30 range if needed. If ground detection is too costly, set StandardGroundDetection's cast type to Sphere.

    11.x to 12.x

    • Clean import recommended

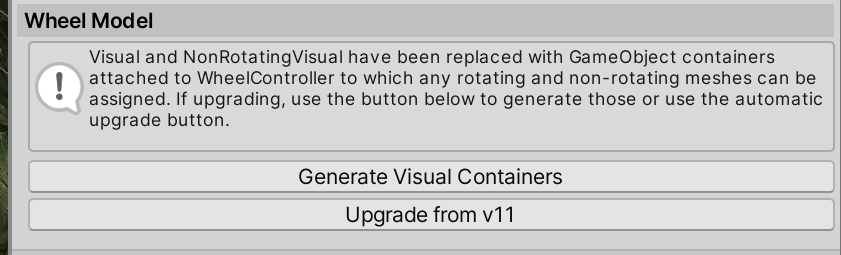

    • WheelController: rotatingVisual and nonRotatingVisual replaced with Rotating and NonRotating containers (use Upgrade from v11 button)

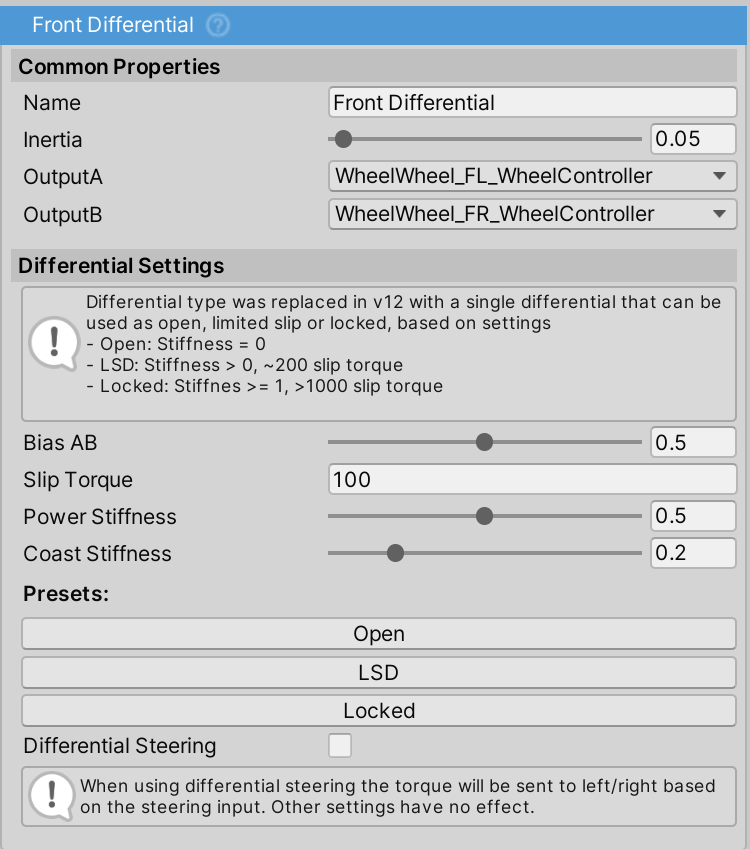

    • Differential: Single differential with adjustable settings replaces fixed types
      • Open: Stiffness = 0
      • LSD: Stiffness > 0, Slip torque ~200
      • Locked: Stiffness = 1, Slip torque > 1000

    11.10f to 11.11f

    • Clean import required due to the resources that were moved.

    10.x to 11.x

    • Unity 2020.3.40f minimum
    • Clean import required
    • Powertrain outputs need re-assignment
    • EngineStartComponent -> EngineStartStopComponent (StateDefinition settings need re-assignment)
    • Clutch type changed to enum (re-assign if not Automatic)

    9.x (1.9.x) to 10.x

    • MAJOR UPDATE - Clean import required (remove NWH folder completely)
    • Unity 2021.3.16f minimum
    • WheelController3D: Major rewrite, new API, Force Coefficient -> Grip, Slip Coefficient -> Stiffness
    • Vehicle:
      • NRigidbody removed (use Fixed Delta Time instead: 0.01-0.01667 for desktop)
      • Center of mass/inertia moved to optional VariableCenterOfMass script
      • Historical v10 migration: the old anti-roll bar was replaced at that time by Force Application Point Distance. That field is not part of the current v14 Wheel Controller; current projects use the ARB and roll-center controls.
      • Automatic Sequential transmission removed (use Automatic + Is Sequential)
      • Clutch PID replaced with clutchEngagementRPM and clutchEngagementRange
      • Wheel camber set on WheelController (not WheelGroup)
    • Scene: CharacterVehicleChanger integrated into VehicleChanger, tag-based vehicle finding removed

    v1.8.x to v1.9.x (v9.x)

    • Clean import required.

    v1.7.x to v1.8.x

    • Clean import required.

    v1.7.5 to v1.7.6

    • Clean import required.

    v1.7.3 to v1.7.4

    • Clean import required (asmdef changes)
    • Lateral friction calculation improved (may require friction coefficient adjustment)

    v1.6.x to v1.7

    • Powertrain inertia changes (vehicles accelerate faster)
    • Multiplayer: NetworkRigidbody option added (don't use with NetworkTransform simultaneously)

    v1.5.x to v1.6.x

    • Clean import required (asset restructuring)

    • .NET 4.x API Compatibility Level required

    • Multiple NWH assets require simultaneous update (Common folder restructure)

    • Torque converter removed (use clutch slip torque)

    • CVT uses single forward/reverse gear ratio (minimum ratio for each direction)

    v1.5 to v1.5.1

    • PIDController.cs may duplicate on import (remove if occurs)

    v1.4 to v1.5

    • Clean import required (folder restructure for multi-asset compatibility)
    • WheelController damper settings need ~50% reduction

    v1.3 to v1.4

    • NRigidbody component now required (add manually to existing vehicles)

    v1.2 to v1.3

    • No changes required

    v1.1 to v1.2

    • Delete Scripts folder before upgrading (namespace changes)
    • InputProviders split: SceneInputProvider (scene input) + VehicleInputProvider (vehicle input)
    • Shared scripts moved to NWH/Common directory

    v1.0 to v1.1

    • Delete Scripts > Vehicle > Input folder before upgrading
    • InputSystem package required (auto-installed)
    • InputManager binding changes:
      • Horizontal -> Steering
      • Vertical split to Throttle and Brakes
      • Add: CameraRotation, CameraPanning, CameraRotationModifier, CameraPanningModifier, CameraZoom, FPSMovement, ToggleGUI

    NWH Vehicle Physics 1 to NWH Vehicle Physics 2

    • Remove all previous NWH Vehicle Physics and Wheel Controller 3D versions
    • Manual vehicle upgrade required (major differences)
    • Use Vehicle Setup Wizard to expedite setup

    Code

    These steps apply only to custom scripts, assembly definitions or integrations.

    14.3.x to 14.4.0 (code)

    • ModuleWrapper now has protected virtual Start() and OnDestroy(). They add the module to a vehicle that is already running and remove it when the wrapper is destroyed. A custom wrapper that declares its own Start() or OnDestroy() hides them (compiler warning CS0114); make them protected override and call base.Start() or base.OnDestroy().
    • ManagerVehicleComponent.RemoveAndOffboardComponent() disables a component and takes it out of its manager, the counterpart of AddAndOnboardNewComponent().

    14.2 Beta 2 to 14.3.0 (code)

    • Re-select NWH.WheelController assembly references created in 14.0-14.2. Replace Wheel Controller's MathUtility with WheelMathUtility.
    • Remove references to NWH.VehiclePhysics2.Tests and NWH.VehiclePhysics2.PlayModeTests. Add Burst yourself if your code needs it and no other package installs it.
    • Set Photon's global send rates in your networking setup; PhotonMultiplayerVehicle's old rate fields are ignored.
    • For custom controls, use runtime rebinding or your own Input Actions asset and provider. Shipped wrappers no longer regenerate on import.

    13.x to 14.x (code)

    • Add float DeltaTime to VC_Update/VC_FixedUpdate overrides and base calls. Rename VC_SetVehicleController(VehicleController) to VC_Initialize(VehicleController), keeping the argument.
    • Point wheel references at WheelController and rename the old wheel fields to wheelController. Scene and prefab data migrates automatically. Update wheel access such as .Radius -> .wheel.radius and .MotorTorque -> .motorTorque. Access friction through StandardFriction.
    • Update engine power modifiers, shift callbacks and QueryInertia to take delta time; change LoadComponentFromHash(in int) to ref int.
    • Replace NVP_NUIEditor with NWH.VehiclePhysics2.VehiclePhysicsNUIEditor and NVP_NUIPropertyDrawer with NUIPropertyDrawer.
    • Update custom WheelCast implementations: distance excludes wheel radius, and the result must include localPoint in the wheel's local space.
    • For custom simulation rates, use WheelControllerGroup.targetEffectiveRateOverride; manual Step() calls no longer simulate wheels.
    • To keep Rewired, write an InputProvider integration.
    • For custom multiplayer code, include MultiplayerState.brakes and call GetMultiplayerState() from one place only; each call clears pending button events.
    • For custom trailer couplers, use the module-created collider and TrailerCouplerMarker; forwarding trigger calls to the hitch wrapper no longer works.

    v1.5.x to v1.6.x (code)

    • Reference NVP2 from custom assembly definitions.
    • Configure the SteeringWheelInput assembly definition for the Logitech SDK used in this release.

    v1.4 to v1.5 (code)

    • Input classes renamed: Input -> VehicleInputHandler, InputStates -> VehicleInputStates.
