    Turbo Flutter Component

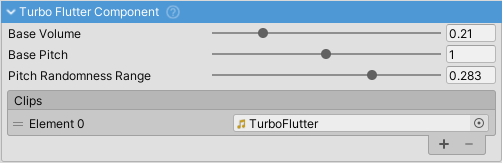

    TurboFlutterComponent inspector

    Turbo flutter and wastegate release sound. Triggered when wastegate opens on vehicles with forced induction (turbocharger/supercharger).

    Properties

    • Base Pitch - Base pitch value (0.1-3.0, default: 1.0)
    • Pitch Randomness - Random pitch variation per trigger (0-0.5, default: 0.1)
    • Boost Pitch Modifier - How much boost pressure affects pitch (0-1.0, default: 0.2)
    • Min Time Between Flutters - Cooldown between triggers to prevent audio phasing (default: 0.15s)

    Behavior

    • Listens to ForcedInduction.onWastegateRelease event
    • Volume scales with wastegate boost pressure (squared)
    • Pitch affected by boost pressure, base pitch, and randomness
    • AudioSource positioned at engine location (soundManager.engineSourceGO)
    • Uses engine audio mixer group
