Input States

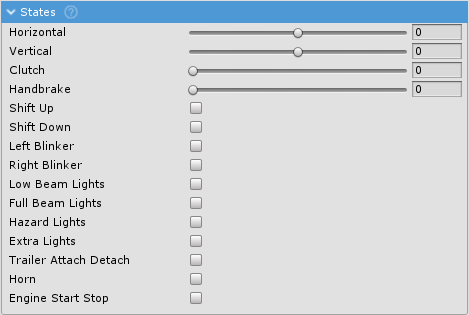

InputStates inspector.

VehicleInputStates is a struct that holds all vehicle input values and button states, normalized to standard ranges.

Key Features

  • Normalized Ranges: Analog inputs (throttle, brakes, steering, clutch, handbrake) are normalized to 0-1 or -1 to 1
  • State Copying: Entire input state can be copied between vehicles (e.g., trailer synchronization)
  • Raw Values: Each analog input has both processed and raw versions for debugging
  • Input Swapping: When swapInputInReverse is enabled in VehicleInputHandler, throttle and brake axes swap in reverse gear for more intuitive control

Input Fields

Analog Inputs

  • steering [-1, 1]: -1 = full left, 1 = full right
  • throttle [0, 1]: Accelerator pedal position
  • brakes [0, 1]: Brake pedal position
  • clutch [0, 1]: 0 = engaged, 1 = disengaged (manual transmission)
  • handbrake [0, 1]: Parking brake / drift brake

Swapped Inputs

  • inputSwappedThrottle: Contains throttle in forward gears, brake in reverse
  • inputSwappedBrakes: Contains brake in forward gears, throttle in reverse

Button States

  • shiftUp / shiftDown: Sequential shifting
  • shiftInto: Direct gear selection (-1 = reverse, 0 = neutral, 1+ = forward gears, -999 = no shift)
  • engineStartStop: Toggle engine on/off
  • leftBlinker / rightBlinker / hazardLights: Turn signals
  • lowBeamLights / highBeamLights / extraLights: Lighting controls
  • horn: Horn button (held down state)
  • trailerAttachDetach: Attach/detach trailer (requires TrailerHitchModule)
  • cruiseControl: Toggle cruise control (requires CruiseControlModule)
  • boost: Boost activation (requires NOSModule or similar)
  • flipOver: Right overturned vehicle (requires FlipOverModule)

Note: Also check Input Setup page.
