HUD_Airspeed

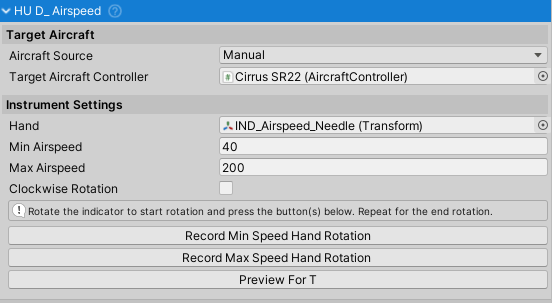

HUD_Airspeed inspector.

Purpose and Role

The HUD_Airspeed instrument displays current aircraft airspeed on an analog gauge using a rotating needle/hand. It reads the AirspeedKTS property from the aircraft controller and translates it into needle rotation based on configured min/max speeds and rotation angles. This component provides real-time visual feedback of aircraft speed in knots.

Data Source and Update Mechanism

The instrument continuously reads:

  • Airspeed from AircraftController.AirspeedKTS (in knots)
  • Updates every frame in Update()
  • Clamps displayed airspeed to range [0, 2000] kts to prevent invalid display values

Configuration Properties

Speed Range

  • Min Airspeed (float, kts) - Airspeed corresponding to needle at minimum rotation

    • Default: 40 kts
    • Typical range: 0-100 kts depending on aircraft
    • Represents stall speed or lowest display speed

  • Max Airspeed (float, kts) - Airspeed corresponding to needle at maximum rotation

    • Default: 160 kts
    • Typical range: 100-500 kts depending on aircraft
    • Represents cruise or VNE (never exceed) speed

Needle Rotation Configuration

  • Hand (Transform) - The rotating needle/pointer object

    • Must be assigned in inspector
    • Should rotate around local Z-axis
    • Position/rotation adjusted in editor to set min/max positions

  • Min Speed Rotation (Quaternion) - Hand rotation at minAirspeed

    • Set by rotating hand to minimum position and clicking "Record Min Speed Hand Rotation"
    • Defines the needle angle when airspeed equals minAirspeed
    • Typically 0° or negative angle depending on gauge design

  • Max Speed Rotation (Quaternion) - Hand rotation at maxAirspeed

    • Set by rotating hand to maximum position and clicking "Record Max Speed Hand Rotation"
    • Defines the needle angle when airspeed equals maxAirspeed
    • Typically 90-270° depending on gauge design

Rotation Direction

  • Clockwise Rotation (bool) - Whether needle rotates clockwise
    • Default: true
    • If true: Needle rotates clockwise from min to max
    • If false: Needle rotates counter-clockwise from min to max
    • Matches most real aircraft airspeed indicators

Display Range and Calibration

Airspeed Mapping

DisplayedAirspeed = clamp(AirspeedKTS, 0, 2000)
NormalizedValue = (DisplayedAirspeed - minAirspeed) / (maxAirspeed - minAirspeed)
NeedleRotation = interpolate(minSpeedRotation, maxSpeedRotation, normalizedValue)

Calibration Process

  1. Set speed range - Configure minAirspeed and maxAirspeed to match your gauge
  2. Set minimum position - Rotate hand to minimum speed marking, click "Record Min Speed Hand Rotation"
  3. Set maximum position - Rotate hand to maximum speed marking, click "Record Max Speed Hand Rotation"
  4. Verify direction - Check clockwise rotation setting matches your gauge
  5. Test - Fly aircraft and verify needle movement matches airspeed

Realistic Airspeed Context

Aircraft airspeed indicators typically display:

  • Stall speed: 15-25 kts for light aircraft, 130+ kts for jets
  • Normal cruise: 50-100 kts for light aircraft, 250-500 kts for jets
  • Never exceed (VNE): 100-160 kts for light aircraft, 500+ kts for jets

Aircraft Source Configuration

The instrument can source aircraft data in two ways:

  • Manual Source (default)

    • Directly assign targetAircraftController in inspector
    • Works in simple scenes with single aircraft
    • More predictable behavior

  • Vehicle Changer Source

    • Automatically switches to active vehicle via VehicleChanger.Instance
    • Useful for multi-aircraft scenarios
    • Requires VehicleChanger component in scene

Setup Instructions

Basic Setup

  1. Create UI/3D element for gauge background (texture or model)
  2. Create child object for rotating needle/hand (cube, model, etc.)
  3. Assign hand Transform to Hand property
  4. Set Min Airspeed and Max Airspeed values
  5. Rotate hand to minimum position (e.g., left side)
  6. Click "Record Min Speed Hand Rotation" button
  7. Rotate hand to maximum position (e.g., right side)
  8. Click "Record Max Speed Hand Rotation" button
  9. Verify Clockwise Rotation matches your gauge design
  10. Assign Target Aircraft Controller (if using Manual source)
  11. Test in Play mode by flying aircraft

Editor Setup Workflow

1. Select HUD_Airspeed component in hierarchy
2. In inspector, locate Record buttons
3. Adjust hand rotation (Z-axis) to show 40 kts
4. Click "Record Min Speed Hand Rotation"
5. Adjust hand rotation to show 160 kts
6. Click "Record Max Speed Hand Rotation"
7. Toggle "Clockwise Rotation" if needle moves wrong direction

Public API

Properties (Read-only)

All properties are read-only; configured in inspector.

Methods

  • GetRotationForAirspeed(float airspeedKTS) - Calculate hand rotation for given airspeed

    • Returns: Quaternion rotation for the hand
    • Used internally but available for custom logic
    • Respects min/max clamping and clockwise/counter-clockwise setting

  • GetCurrentRotation() - Get current hand rotation

    • Returns: Current localRotation of hand transform
    • Useful for debugging needle position

Common Usage Patterns

Basic Flight Testing

HUD_Airspeed airspeedGauge = GetComponent<HUD_Airspeed>();

// Manually test needle positions
Quaternion minRotation = airspeedGauge.GetRotationForAirspeed(40);
Quaternion maxRotation = airspeedGauge.GetRotationForAirspeed(160);
Quaternion cruiseRotation = airspeedGauge.GetRotationForAirspeed(100);

Custom Speed Range for Specific Aircraft

HUD_Airspeed airspeedGauge = GetComponent<HUD_Airspeed>();

// For a fighter jet with higher speeds
airspeedGauge.minAirspeed = 100;   // Stall speed
airspeedGauge.maxAirspeed = 500;   // High-speed cruise

// Recalibrate needle positions
// (In editor, re-record min/max rotations)

Dynamic Aircraft Switching

// With VehicleChanger source, instrument automatically updates
airspeedGauge.aircraftSource = HUD_Instrument.AircraftSource.VehicleChanger;

// Then switching aircraft automatically updates the displayed airspeed

Integration with Other Systems

  • AircraftController - Source of airspeed data (AirspeedKTS property)
  • VehicleChanger - Optional automatic aircraft source switching
  • HUD_Instrument - Base class providing common instrument functionality
  • Other HUD instruments - Share same aircraft reference for synchronized displays

Troubleshooting

Needle Not Moving

  1. Check hand Transform is assigned
  2. Verify target AircraftController is assigned and has valid aircraft
  3. Confirm aircraft is moving (airspeed > 0)
  4. Check that hand rotation was recorded (min and max)

Needle Rotating Wrong Direction

  • Toggle Clockwise Rotation setting

Display Range Wrong

  • Adjust Min Airspeed and Max Airspeed values
  • Re-record hand positions with "Record Min/Max Speed Hand Rotation" buttons
  • Verify needle is at correct position before recording

Needle Stuck at Minimum/Maximum

  • Airspeed exceeds configured range; increase Max Airspeed or decrease aircraft speed
  • Verify clamp range is reasonable (system clamps to [0, 2000] kts)
  • HUD_Instrument - Base class for all flight instruments
  • AircraftController - Source of airspeed data
  • HUD_Altimeter - Altitude display instrument
  • HUD_Attitude - Pitch/roll attitude indicator
  • HUD_Heading - Compass heading indicator
  • HUD_Turn - Turn rate indicator
  • HUD_VerticalSpeed - Vertical speed indicator
